650 composite Manhole Cover |
The basis of the project was to design a manhole cover that was both light weight and durable. The best possible solution is to create a manhole cover that uses composite materials. |
Manhole Covers
2 A Cover
| DESCRIPTION: |

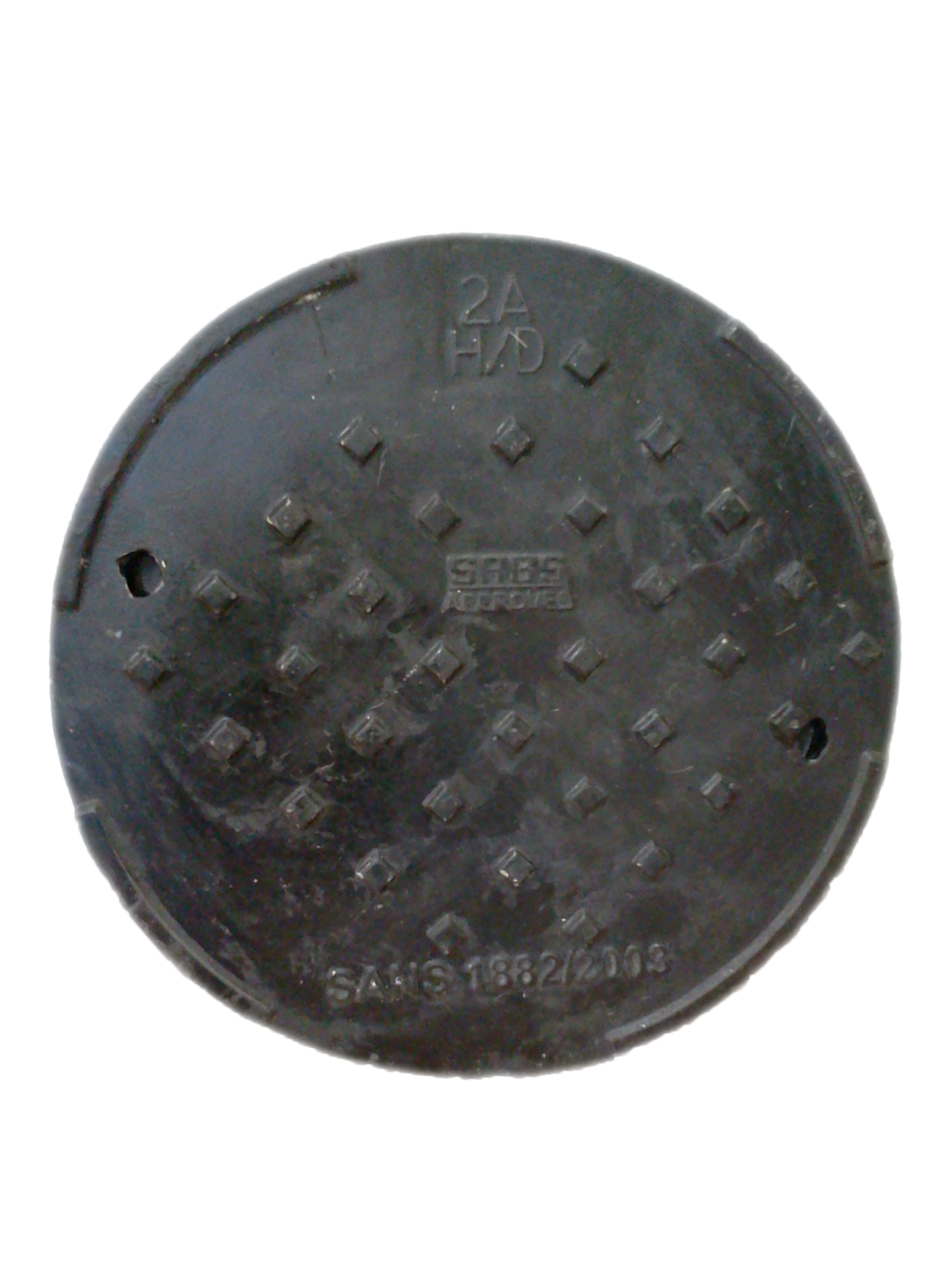

2A Polymer manhole cover and frame to SABS specification Sans 1882/2003 |
| DIMENSIONS: |
610mm diameter - see drawings for more details |
| WEIGHT: |
Frame 32kg, Cover 32kg |
| FORCE: |
135KN |
| USAGE: |
Telecommunication, stormwater, sewer and roadways for heavy duty traffic |
| DUTY CLASS: |
Heavy Duty |
| OPTIONAL: |
Fibre Plastic Lock and Key |
| VARIATIONS: |
Cover & Frame for new installations Replacement covers for cast iron(stolen) |
| COLOURS: |
Black |
| COVER BRANDING: |
As per customer requirements |
| CURRENT USERS: |
All Municipals, Telecommunication ,Civils and Telekom |
|
|
| DESCRIPTION: |

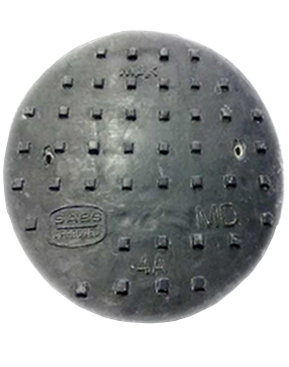

4A Polymer manhole cover and frame to SABS specification Sans 1882/2003 |
| DIMENSIONS: |
610mm diameter - see drawings for more details |
| WEIGHT: |
Frame 28kg, Cover 28kg |
| FORCE: |
40KN |
| USAGE: |
Telecommunication, stormwater, sewer and roadways for heavy duty traffic |
| DUTY CLASS: |
Heavy Duty |
| OPTIONAL: |
Fibre Plastic Lock and Key |
| VARIATIONS: |
Cover & Frame for new installations Replacement covers for cast iron(stolen) |
| COLOURS: |
Black |
| COVER BRANDING: |
As per customer requirements |
| CURRENT USERS: |
All Municipals, Telecommunication ,Civils and Telekom |
|
|
| |
| DESCRIPTION: |

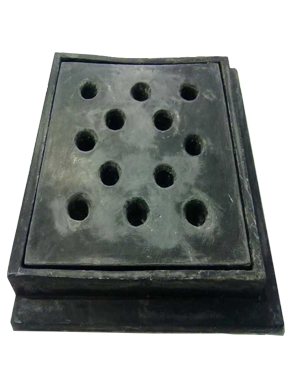

TELKOM 500 Polymer manhole cover and frame to SABS specification Sans 1882/2003 |
| DIMENSIONS: |
715mm diameter - see drawings for more details |
| WEIGHT: |
Frame 26kg, Cover 26kg |
| FORCE: |
40KN |
| USAGE: |
Telecommunication, stormwater, sewer and roadways for heavy duty traffic |
| DUTY CLASS: |
Heavy Duty |
| OPTIONAL: |
Fibre Plastic Lock and Key |
| VARIATIONS: |
Cover & Frame for new installations Replacement covers for cast iron(stolen) |
| COLOURS: |
Black |
| COVER BRANDING: |
As per customer requirements |
| CURRENT USERS: |
All Municipals, Telecommunication ,Civils and Telekom |
|
 |
|
|
|
|
|
